HN-8806 Flame-Retardant Potting Silicone (UL94-V0 Equivalent)

Name: HN-8806 Flame-Retardant Potting Silicone (UL94-V0 Equivalent)
Brand: Shenzhen Hanast New Material co.,LTD
SKU: HN-8806A/B
Price: 4 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	Hanast
Certification:	FDA
Model Number:	HN-8806A/B

Detail Information

Place of Origin:

Shenzhen in China

Brand Name:

Hanast

Certification:

FDA

Model Number:

HN-8806A/B

Highlight:

High Light

Highlight:

flame retardant potting silicone

UL94-V0 silicone potting compound

fireproof silicone potting material

Trading Information

Minimum Order Quantity:

2 kgs/ for sample

Price:

Packaging Details:

2kg, 10kg, 25kg

Delivery Time:

5-8 work days

Payment Terms:

T/T,Paypal

Supply Ability:

20 tons/day

Product Description

1.HN-8806 Flame-Retardant Potting Silicone (UL94-V0 Equivalent)

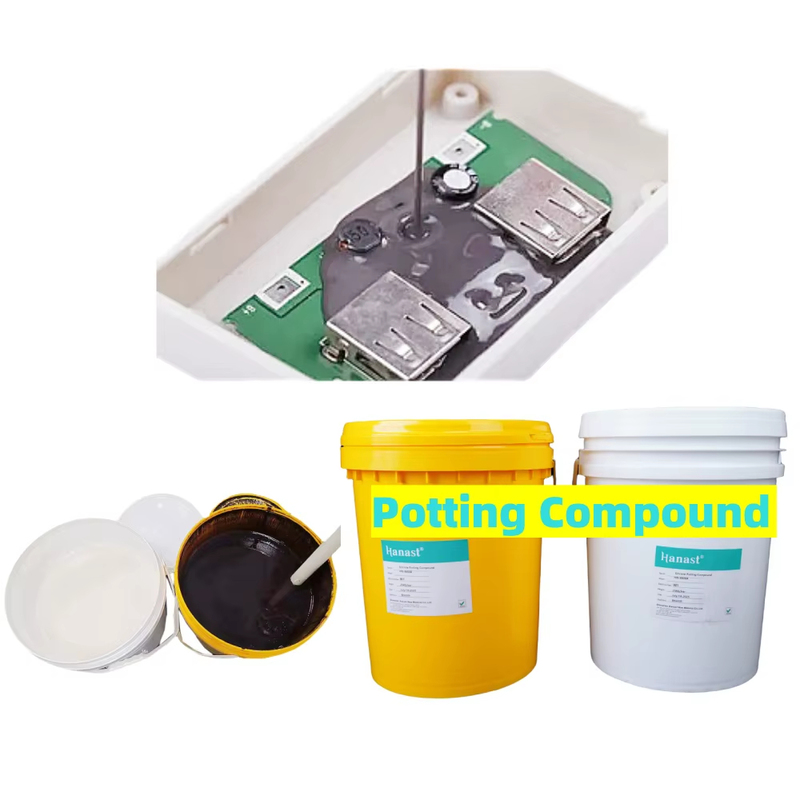

HN-8806 Flame-Retardant Potting Silicone (UL94-V0 Equivalent) 0

Product Overview

HN-8806 Flame-Retardant Potting Silicone (UL94-V0 Equivalent)

HN-8806 Flame-Retardant Potting Silicone (UL94-V0 Equivalent) 1

Key Technical Highlights:
- Flame Retardant: UL94 V-0
- Thermal Conductivity: ≥0.76 W/m·k
- Operating Temperature: -50ºC to +250ºC
- Hardness (Shore A): 50±5 (Excellent stress relief)
- Volume Resistivity: 1.0×10¹⁵ Ω·cm (Superb insulation)

Technical Parameters

Property	Value
Mix Ratio (A:B)	1:1 by weight or volume
Viscosity (A & B)	4500–5000 mPa·S
Density (A & B)	1.50 ± 0.05 g/cm³
Pot Life (25°C)	0.3–0.4 hours
Cure Time (25°C)	4–10 hours (initial)
Cure Time (80°C)	0.2 hours
Hardness (Shore A)	50 ± 1
Thermal Conductivity	0.76 W/m·K
Volume Resistivity	1.0×10¹⁵ Ω·cm
Dielectric Strength	18–25 kV/mm
Operating Temperature	-50°C to +250°C

Typical Applications

HN-8806 is widely used in:
- Power Modules & Inverters
- High-Voltage Transformers
- Battery Packs & EV Chargers
- LED Outdoor Drive Power Supplies
- Fast-Charging Adapters
- Automotive Control Units
Handling & Curing Instructions
1. Preparation – Stir Components A and B separately before use.
2. Weighing – Weigh A and B in a 1:1 ratio.
3. Mixing – Mix thoroughly in a clean container. Stir in one direction to minimize bubbles.
4. Degassing – Vacuum degas for 5–10 minutes if required.
5. Potting – Pour into clean, dry housings. For large parts, consider staged potting.
6. Curing – Cure at room temperature (4–12 hrs) or heat at 80°C for 0.2 hrs.
Packaging & Storage
- Standard Packaging:
  - 10 kg/set (A: 5 kg + B: 5 kg)
  - 20 kg/set (A: 10 kg + B: 10 kg)
  - 50 kg/set (A: 25 kg + B: 25 kg)
- Storage: Keep in a cool, dry place. Avoid moisture and direct sunlight.
- Shelf Life: 6 months. Can be re-tested after expiry.
Frequently Asked Questions (FAQ)

Q1: What is the thermal conductivity of HN-8806?
A: It is 0.76 W/m·K, suitable for low to medium heat dissipation applications.

Q2: Can HN-8806 be used for outdoor LED drivers?
A: Yes, it offers excellent moisture resistance, UV stability, and temperature endurance.

Q3: Is HN-8806 flame retardant?
A: Yes, it passes the UL94 vertical burn test – flame extinguishes within 30 seconds.

Q4: What is the pot life of HN-8806?
A: Approximately 18–24 minutes at 25°C. Work quickly for best results.
