Silicone Gel Load Cell 1:1 Silicone Electrical Waterproofing Gel For PCB Junction Box

Silicone Gel Load Cell 1:1 Silicone Electrical Waterproofing Gel For PCB Junction Box

Product Description of Silicone Electrical Waterproofing Gel :

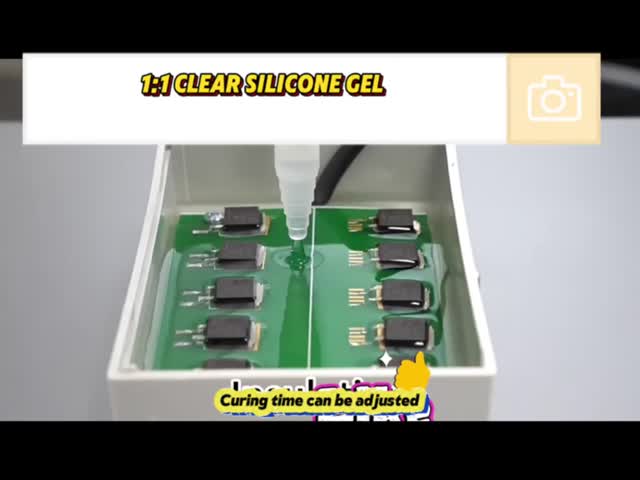

Electronic-grade silicone gel is a two-component, addition-curing polymeric material that, upon curing, exhibits exceptional softness and elasticity (resembling "jelly" to the touch). It features excellent electrical insulation properties, high and low-temperature resistance (ranging from -50°C to 250°C), and superior resistance to aging. Specifically designed for precision electronic components, it is primarily utilized for insulation protection, moisture and dust proofing, and stress buffering.

Product Features of silicone electrical waterproofing gel:

1. Low viscosity, excellent flow properties, bubble-free
2. Appearance: Transparent with high clarity
3. Temperature Resistance: Withstands both high and low temperatures
4. Waterproof (IP68 rating)
5. Strong vibration resistance, low stress, and high impact resistance
6. Flame retardant
7. Yellowing-resistant and UV-resistant
8. Adjustable viscosity and curing time
9. Compatible with potting equipment for automated processing
10. Highly flexible; becomes soft as jelly after curing
11. Compatible with various fillers: pigments, thermally conductive powders, flame retardants, etc.

Product application of silicone electrical waterproofing gel:

Automotive Electronics: Provides sealing and protection for precision automotive sensors, IGBT modules, hybrid circuits, and ECU control boards. Power & Photovoltaics: Offers potting and insulation for high-power rectifiers, smart water meters, solar cell modules, and inverters. Component Protection: Enables low-stress coating for sensitive electronic components, preventing moisture ingress and short circuits at the pins.

Physical Properties of silicone electrical waterproofing gel
