products details

Home > Products >

Epoxy Potting Compound

Vulcanizing Transparent Electrical Clear Potting Epoxy Silicon Gel Shockproof

All Category

Thermally Conductive Potting Compound

Degumming Agent

Ms. Candy

sales11@hanastsilicone.com/candy@hanastsilicone.com

+8613670122311

13670122311

Contact Now

Vulcanizing Transparent Electrical Clear Potting Epoxy Silicon Gel Shockproof

Brand Name:	Hanast
Model Number:	HN-6607A/B
MOQ:	1 kilogram
Price:	Negotiable
Packaging Details:	25KG/ Iron Drum
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ROHS，SGS

The Mixing Ratio:

A:B=1：1

Viscosity After Mixing（cp S. 25℃):

800～1500

Operate Time （25℃):

Penetration (1/10mm):

200-400

Curing Conditions (120℃):

20~30min

Cured Properties Hardness(Shore A, 24hr):

Highlight:

vulcanizing clear potting epoxy

Shockproof clear potting epoxy

vulcanizing electrical potting epoxy

Product Description

Processing Customized High Transparent Jelly Silicon Gel PCB Circuit Board Protection Shockproof Repairable Electronic Silicon Gel

Characteristic
1. Stable physical and chemical properties, with a wide temperature resistance of -60~230 ℃;
2. Low viscosity, easy to use, no solid fillers, fully transparent, and easy to observe sealing components;
3. Capable of repeated operation, repairability, high flexibility, and extremely low shrinkage rate;
4. Good dust-proof, moisture-proof, shockproof, insulation, and other performance;
5. After solidification, the surface becomes naturally sticky, enhancing the physical adhesion of most substrates without the need for a primer;
6. It can be cured at room temperature or by heating, with the characteristic of faster curing at higher temperatures, and the curing time can be freely controlled;

Product Description:
This product is a very soft, low cross-linking density addition silicone rubber. It is a low-viscosity liquid before vulcanization. After vulcanization, in addition to the general characteristics of addition silicone rubber, it has good shock absorption, moisture resistance and sealing due to its soft nature. properties and excellent dielectric insulation properties over a wide range of temperature and humidity.

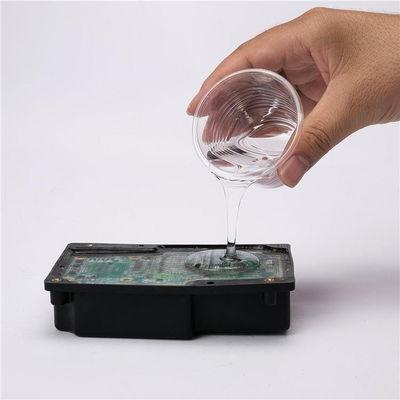

Vulcanizing Transparent Electrical Clear Potting Epoxy Silicon Gel Shockproof 0

Product Features:
1. Medium temperature curing, the curing time can be adjusted according to different temperatures;
2. It is low-viscosity silicone oil before curing and gel elastomer after curing.

Vulcanizing Transparent Electrical Clear Potting Epoxy Silicon Gel Shockproof 1

Physical Properties:

Characteristics before curing
Component	Component A	Component B
Color	Transparent liquid	Transparent liquid
viscosity(cp s. 25℃)	800～2000	800～1800
Relative density(mpa•s)	1 ．0～1.12	0.98～1.02
The mixing ratio	A:B=1:1
Viscosity after mixing(cp s. 25℃)	800～1500
Operate Time (25℃)	2 h
Penetration (1/10mm)	~ 200 400
Curing conditions (120℃)	20~30 min
Cured properties Hardness(Shore A, 24hr)	0～10

Instructions:

1. Before mixing, component A needs to be properly stirred manually or mechanically, and component B should be fully shaken in a sealed state before use.

2. When it needs to be attached to the application material, please confirm whether it can be attached before use, and then apply it. 3. Before construction, please weigh and mix according to the weight ratio of A:B = 1:1, and stir thoroughly before applying glue.

Vulcanizing Transparent Electrical Clear Potting Epoxy Silicon Gel Shockproof 2

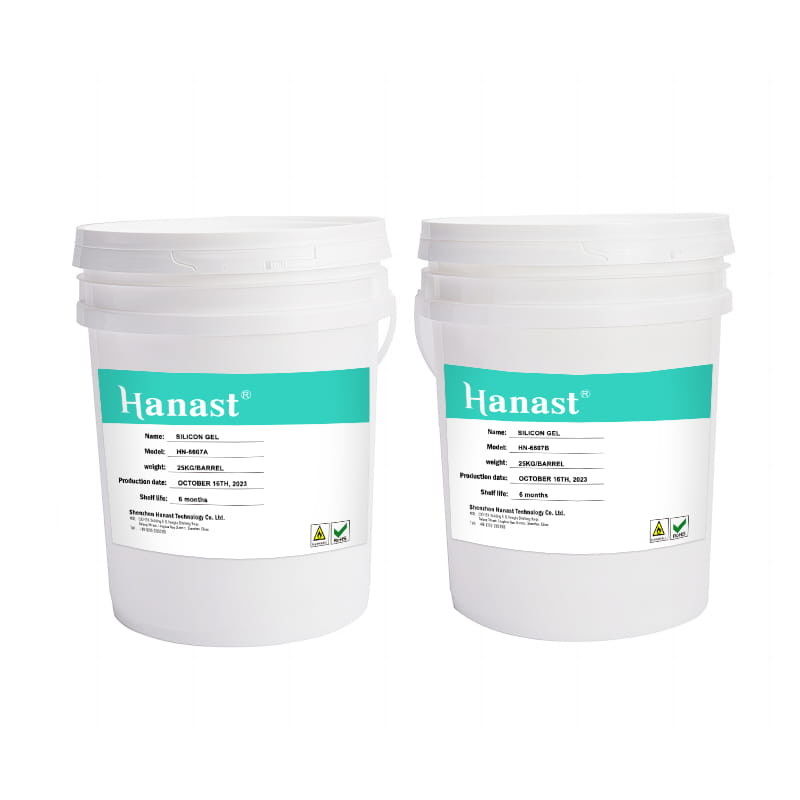

Package:

This product is 40KG per group;

Component A is 20KG (in barrels), and Component B is 20KG (in barrels)

Vulcanizing Transparent Electrical Clear Potting Epoxy Silicon Gel Shockproof 3
Storage and transportation:
1,Store in a cool and dry place. The storage period is 6 months (at 25℃).
2, Products that have exceeded the shelf life should be confirmed for any abnormalities before use.
3,Components A and B of the colloid must be sealed and stored, and be careful of leakage during transportation!
4,Such products are non-dangerous goods and can be transported as general chemicals.
