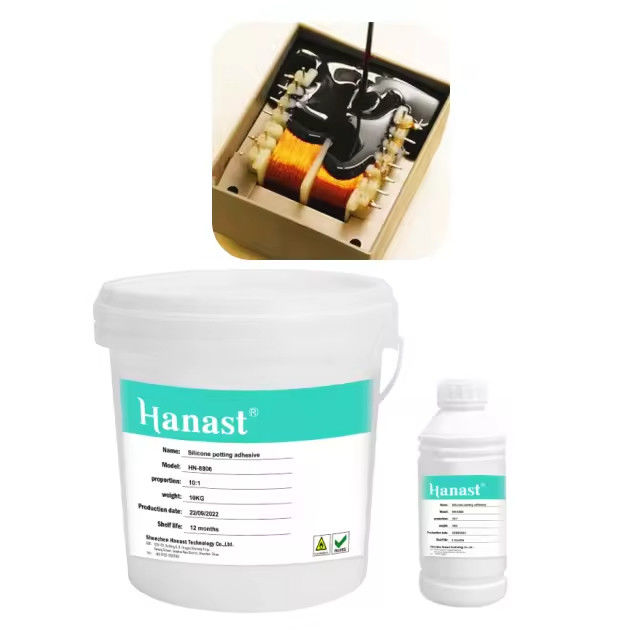

Electronic Raw Silicone Material Low Viscosity Potting Compound Glue 2 Component

All Category

Thermally Conductive Potting Compound

Degumming Agent

Ms. Candy

sales11@hanastsilicone.com/candy@hanastsilicone.com

+8613670122311

13670122311

Contact Now

Electronic Raw Silicone Material Low Viscosity Potting Compound Glue 2 Component

Brand Name:	Hanast
Model Number:	HN-5508AB
MOQ:	1kg
Price:	Negotiable
Packaging Details:	25KG/barrel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ROHS SGS

Feature:

High Hardness 85-95 Shore A

Sample:

Can Be Offered

Keyword:

Epoxy Resin Ab Glue For Electronic Potting

Color:

Black

Application:

Temperature Controllers Sensors Led Driver

Mix Ratio:

Highlight:

2 Component raw silicone material

Potting raw silicone material

Silicone low viscosity potting compound

Product Description

Temperature Controllers Sensors Potting Glue For Electronic 5:1 Black Epoxy Resin Heat Proof two component Potting Ab Glue

Product Description:

HN-5508 epoxy resin at room temperature or low temperature, with low viscosity, long operation time, good fluidity, and easy penetration into the clearance of the product; no bubbles after curing, smooth surface, luster, high hardness; curing materials have good acid and alkali resistance, moisture-proof, moisture, and air aging; curing materials have excellent insulation, compressive resistance, and bonding strength.

Product Application:

HN-5508 is widely used in transformers, resistors, filters, temperature sensors, temperature controllers, ignition coils, high-voltage packs,
aquarium equipment, anion generators, ultrasonic atomizers, and electronics

uring	builder	Epoxy resin 5508	Curing agent 5508
	pigment	Black / White et al	Ruburn / transparent surface
		A sticky epoxy resin water	r liquid specific
	c gravity, g / cm3	1.4-1.5	1.05
	Viscosity of 25℃	4,500—6,000cp s	150—250cp storage
	e Period (25℃)	Six months	x months
processabili	mixing ratio	A: B =5:1 (weight ratio)
	Available for a time of 25℃	2-3H (100g mix)
	curing time	25℃ / 6-8H surface stem, 12-16H fully cured or 60-80℃/1.5-2H
After curing	2 Tensile strength of kg/cm	16-18
	2 Compressive strength of kg/cm	18-22
	Resistance to the voltage of kv/mm	20-22
	Surface resistance ofΩ-cm	14 1.2*10
	Volume resistance ofΩ-cm	15 1.1*10
	contraction percentage%	0.35-0.55
	Water absorption rate was 25℃ * 24H	<0.03%

The hardness of SHORE A

85-95

distortion

temperature ℃

130-150

low temperature resistant ℃

-30

Electronic Raw Silicone Material Low Viscosity Potting Compound Glue 2 Component 0
