Silicone Potting Compound For Electronics 1:1 Grey RTV Silicone Potting Material Flexible Potting Compound
Product Overview for silicone potting compound:

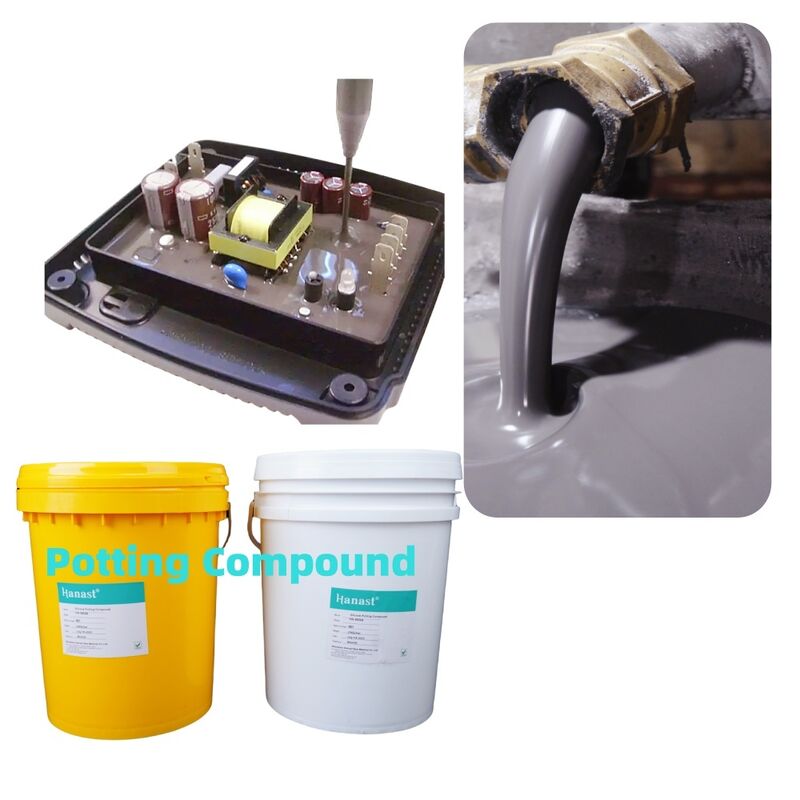

Silicone potting compound is an electronic encapsulation material based on silicone polymers. It is primarily applied by pouring a liquid two-component (or single-component) mixture into electronic components, where, upon curing, it forms an elastic, three-dimensional network structure.
Technical Parameters for silicone potting compound:
| |
Test Items |
Test Standard |
Units |
Product test results |
| Part A |
Part B |
|
Before
Curing
|
1 |
Appearance |
By eyes |
--- |
Grey, fluid |
White, fluid |
| 2 |
Viscosity |
GB/T10247- 2008 |
25ºC,mPa·S |
4500~5000 |
4500~5000 |
| 3 |
Density |
GB/T 13354-92 |
25ºC,g/cm3 |
1.50±0.05 |
1.50±0.05 |
| 4 |
Mixing Ratio (A : B) |
1:1 |
Weight ratio |
100 |
100 |
| Volume ratio |
100 |
100 |
| 5 |
Operating time |
Measured |
hr |
0.3-0.4 |
| 6 |
Curing condition |
Measured |
hr |
4~12
(25ºC, initial cure)
|
|
0.20
(80ºC)
|
|
After
Curing
|
7 |
Appearance |
By eyes |
--- |
Grey Elastomer |
| 8 |
Hardness |
GB/T 531.1-2008 |
Shore A |
50±5 |
| 9 |
Thermal conductivity |
GB/T10297-1998 |
w/m·k |
≥0.76 |
| 10 |
Expansivity |
GB/T20673-2006 |
µm/(m,ºC) |
210 |
| 11 |
Moisture Absorption |
GB/T 8810-2005 |
24h,25ºC,% |
0.01~0.02 |
| 12 |
Volume resistivity |
GB/T 1692-92 |
(DC500V),Ω· cm |
1.0×1016 |
| 13 |
Dielectric intensity |
GB/T 1693-2007 |
Kv/mm(25ºC) |
18~25 |
| 14 |
Temperature Resistance |
Measured |
ºC |
-50~+250 |
Product Applications for silicone potting compound:
The latest silicone potting compounds primarily focus on the precision encapsulation and thermal management of new energy vehicles (specifically the "three-electric" systems and battery packs), third-generation semiconductors (such as IGBT and SiC modules), and 5G communication equipment; core technological developments are centered on "high thermal conductivity," "lightweight foaming," and "vibration resistance across extreme low and high temperatures."
Packaging & Storage for silicone potting compound:
Standard Packaging: Component A 25kg/drum, Component B 25kg/drum.
Store in a cool, dry place. Shelf life: 6 months.
