OEM Low-viscosity Silicone Potting Compound 1:1 for Electronics Insulation Waterproofing

SGS Certified Long Pot Life Silicone Potting Compound for Electronics Insulation

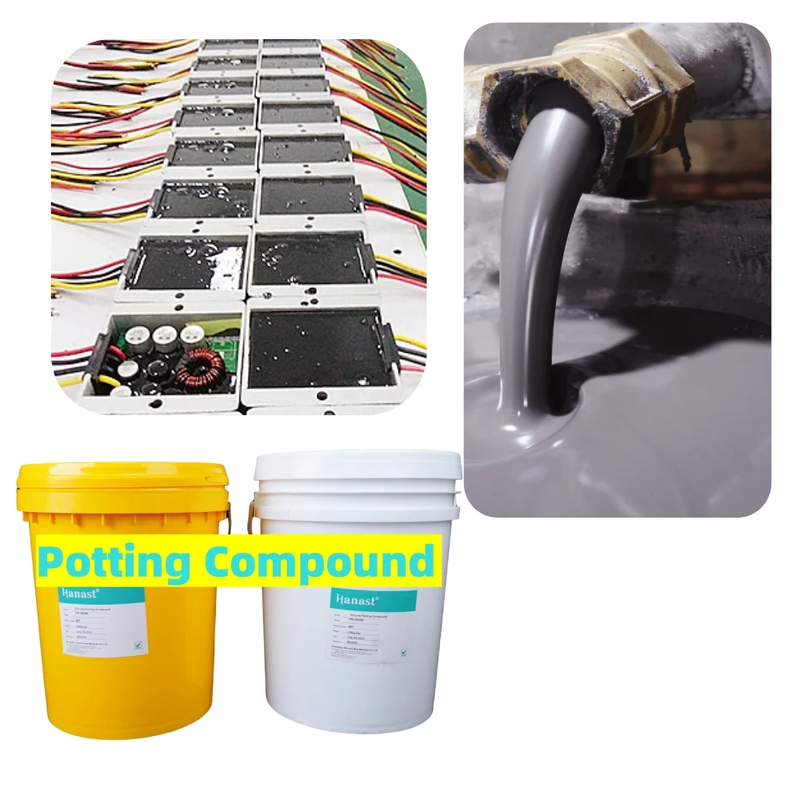

HN-8806 is a two-component 1:1 addition-cure RTV silicone potting rubber that cures into a high-performance elastomer at room temperature or with heating. With SGS certified quality, an extended 3-4 hours working time and excellent electrical insulation, this potting compound is ideal for potting and sealing electronic components such as circuit boards, power modules, high-voltage transformers, battery packs and fast-charging adapters.

Key Features

• Long Pot Life: Extended 3-4 hours working time at room temperature gives operators enough time for large-batch and complex potting jobs.
• Excellent Electrical Insulation: Dielectric strength 18-25 kV/mm and volume resistivity 1.0*10^16 Ω·cm protect electronics from leakage and short circuits.
• Waterproofing Electronics: Cured rubber seals components against water, moisture and humidity for long-term reliability.
• SGS Certified Quality: RoHS and SGS certified materials for safe export to global electronics markets.
• Wide Temperature Resistance: Stable performance from -50°C to 250°C for power and charging electronics.
• Component Safe: Low shrinkage rate, releases no heat or by-products and does not corrode potted components after curing.
• Color Options: Black, white, clear and grey, with clear grade allowing visual inspection of internal components.
• Easy 1:1 Mixing: Equal-weight ratio simplifies dispensing for both manual and automated potting lines.

Typical Physical Properties

• Mix Ratio: A:B = 1:1 by weight
• Color: Black, white, clear, grey
• Viscosity (25°C): 4500-5000 mPa·s (mixed)
• Density: 1.50 ± 0.05 g/cm³
• Operating Time: 3-4 hours at room temperature
• Curing: Room temperature cure at 25°C (4-12 h initial cure); heat cure available to accelerate
• Hardness: 50 ± 5 Shore A
• Dielectric Strength: 18-25 kV/mm
• Volume Resistivity: 1.0*10^16 Ω·cm
• Temperature Range: -50°C to 250°C
• Waterproof: Yes
• Shelf Life: 6 months

Applications

• Circuit boards and electronic component potting
• Power modules and high-voltage transformers
• Battery packs and fast-charging adapters
• LED drivers and general electronics insulation

Packaging & Supply

Available in 25 kg/barrel or A+B set packing with MSDS and TDS documentation. ODM and OEM services welcome. Contact our technical team for samples and specifications.
