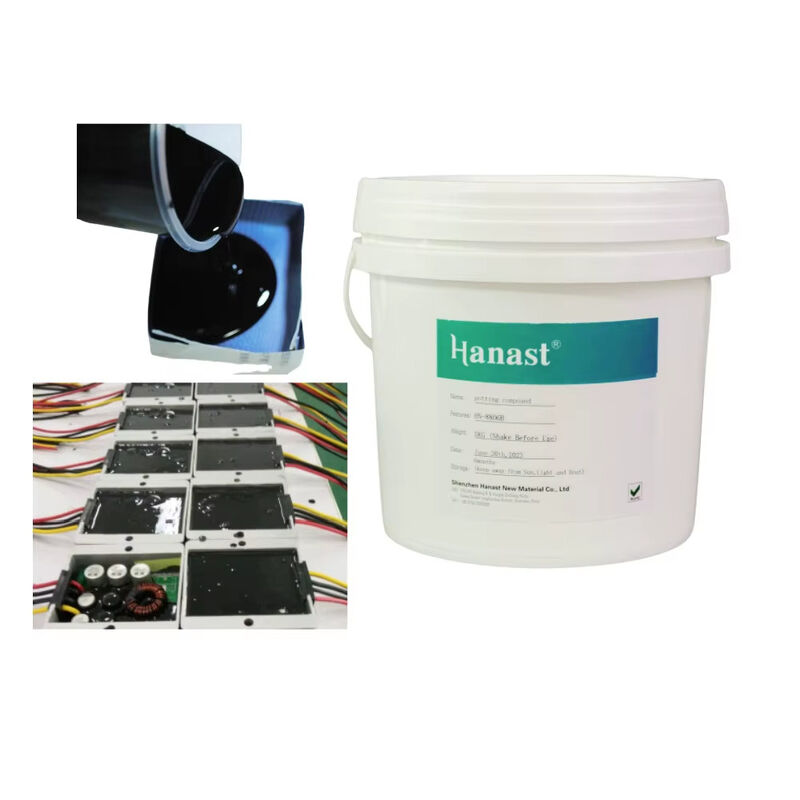

Low Viscosity RTV Potting Compound Silicone Gel For Electronics PCB LED Power Supply

Brand Name:	Hanast
Model Number:	HN-8806AB
MOQ:	1kg
Price:	Negotiable
Packaging Details:	25KG/barrel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ROHS SGS

Feature:

No Corrosion For Filling And Sealing Components

Sample:

1-2kgs

Color:

Black,white,grey(can Be Customized)

Type:

Two-component Addition Type

Advantages:

Excellent Electrical Insulation, High Moisture Resistance

Application:

Electronic Components

Highlight:

Low Viscosity rtv potting compound

Electronics rtv potting compound

RTV potting silicone gel

Product Description

Low Viscosity RTV Silicone Potting Compound For Electronics PCB LED Power Supply Battery Inverter Thermal Conductive Potting Glue High Temp

Product application:

This product is widely used in the potting and sealing of electronic components, such as various power modules, circuit boards, high-voltage transformers, battery packs, fast-charging adapters, Led driver.

PRODUCT DESCRIPTION

HN-8806, two-component addition type silicone potting rubber which can be cured into high-performance elastomer by room temperature or heating.

This potting silicone rubber has excellent electrical insulation, high moisture resistance, and a wide temperature range of -50°C to 250°C.

Test Items	Test Standard	Units	Product test results
Test Items	Test Standard	Units	Part A	Part B
Before Curing	1	Appearance	By eyes	---	Grey, fluid	White, fluid
	2	Viscosity	GB/T10247- 2008	25ºC,mPa·S	4500~5000	4500~5000
	3	Density	GB/T 13354-92	25ºC,g/cm3	1.50±0.05	1.50±0.05
	4	Mixing Ratio (A : B)	1:1	Weight ratio	100	100
	4	Mixing Ratio (A : B)	1:1	Volume ratio	100	100
	5	Operating time	Measured	hr	0.3-0.4
	6	Curing condition	Measured	hr	4~12 (25ºC, initial cure)
	6	Curing condition	Measured	hr	0.20 (80ºC)
After Curing	7	Appearance	By eyes	---	Grey Elastomer
	8	Hardness	GB/T 531.1-2008	Shore A	50±5
	9	Thermal conductivity	GB/T10297-1998	w/m·k	≥0.76
	10	Expansivity	GB/T20673-2006	µm/(m,ºC)	210
	11	Moisture Absorption	GB/T 8810-2005	24h,25ºC,%	0.01~0.02
	12	Volume resistivity	GB/T 1692-92	(DC500V),Ω· cm	1.0×1016
	13	Dielectric intensity	GB/T 1693-2007	Kv/mm(25ºC)	18~25
	14	Temperature Resistance	Measured	ºC	-50~+250

- Storage and transportation:

This product is non-toxic non-dangerous goods, according to the general chemical handling, stored in a cool & dry place (room temperature).

- Shelf Life: 6 months, overdue please reinspect; If it meets the standard, it can still be used.
