Transparent Insulation Electrical Potting Gel Silicone Liquid In Bulk

Brand Name:	Hanast
Model Number:	HN-6607AB
MOQ:	1kg
Price:	Negotiable
Packaging Details:	25KG/barrel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ROHS SGS

Type:

AB Gel Silicone

Application:

Electrical Connector Igbt Load Cell

Keyword:

Transparent Liquid Silicone Gel

Sample:

Feature:

Very Soft ,clear,low-viscosity

Viscosity After Mixing（cp S. 25℃):

800～1500

Highlight:

Insulation Electrical Potting Gel

bulk Electrical Potting Gel

bulk silicone gel for electrical insulation

Product Description

0 HardnessTransparent Liquid Silicone Gel For Electrical Connector Igbt Load Cell Waterproof AB Gel Squishy Gel Soft Liquid Silicone

Product Description:

This product is a very soft, low crosslinking density addition silicone rubber. It is a low-viscosity liquid before vulcanization. After vulcanization, in addition to the general characteristics of addition silicone rubber, it has good shock absorption, moisture resistance and sealing due to its soft nature. properties and excellent dielectric insulation properties over a wide range of temperature and humidity.

Characteristics before curing
Component	Component A	Component B
Color	Transparent liquid	Transparent liquid
viscosity(cp s. 25℃)	800～2000	800～1800
Relative density(mpa•s)	1 ．0～1.12	0.98～1.02
The mixing ratio	A:B=1:1
Viscosity after mixing(cp s. 25℃)	800～1500
Operate Time (25℃)	2 h
Penetration (1/10mm)	200~ 400
Curing conditions (120℃)	20~30 mins
Cured properties Hardness(Shore A, 24hr)	0～10

Product Features:

1. Medium temperature curing, the curing time can be adjusted according to different temperatures;

2. It is low-viscosity silicone oil before curing and gel elastomer after curing.

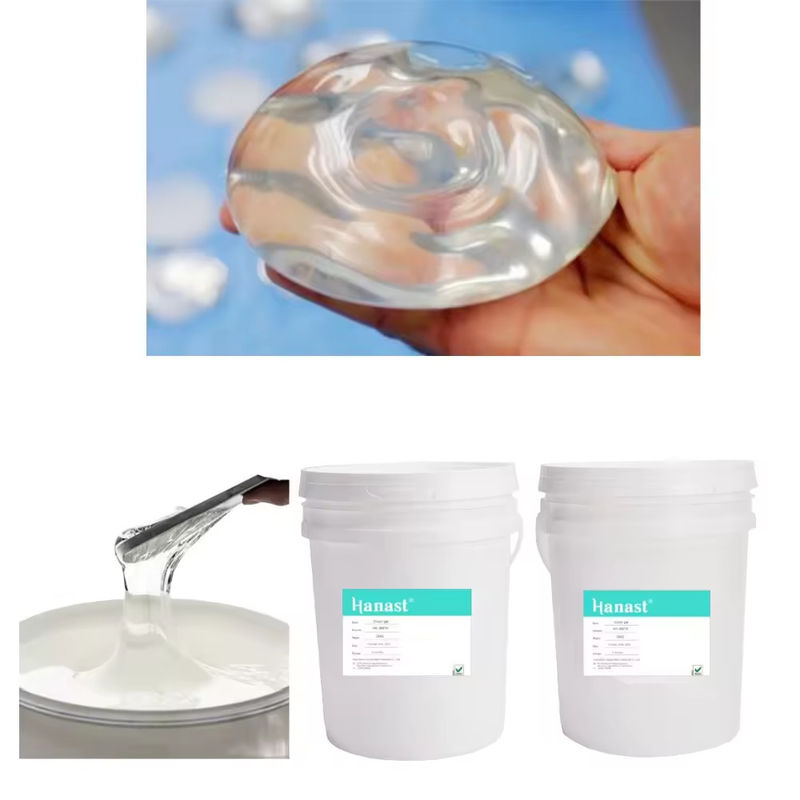

Transparent Insulation Electrical Potting Gel Silicone Liquid In Bulk 0

Instructions:

1. Before mixing, component A needs to be properly stirred manually or mechanically, and component B should be fully shaken in a sealed state before use.

2. When it needs to be attached to the application material, please confirm whether it can be attached before use, and then apply it. 3. Before construction, please weigh and mix according to the weight ratio of A:B = 1:1, and stir thoroughly before applying glue.
