Waterproof Thermal Conductive Liquid Clear Silicone Rtv Gel For Electronics Low Viscosity Waterproof

Brand Name:	Hanast
Model Number:	HN-8806AB
MOQ:	1KG
Price:	4.6
Packaging Details:	Plastic/Iron Drums
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Silicone Potting Glue

Color:

Black/White/Transparent Color, Can Customized

Application:

PCB/Battery/LED

Package:

5kgs/25kgs/200kgs/bag

Material:

Silicone&Agent

Keywords:

Waterproof Sealant

Viscosity:

Excellent Viscosity

Certificate:

MSDS RoHS UL

Feature:

Low And High Temperature Resistance

Thermal Conductivity:

Customize

Supply Ability:

1000000KG

Highlight:

Waterproof liquid clear silicone

liquid clear silicone Rtv

Conductive liquid silicone gel for electronics

Product Description

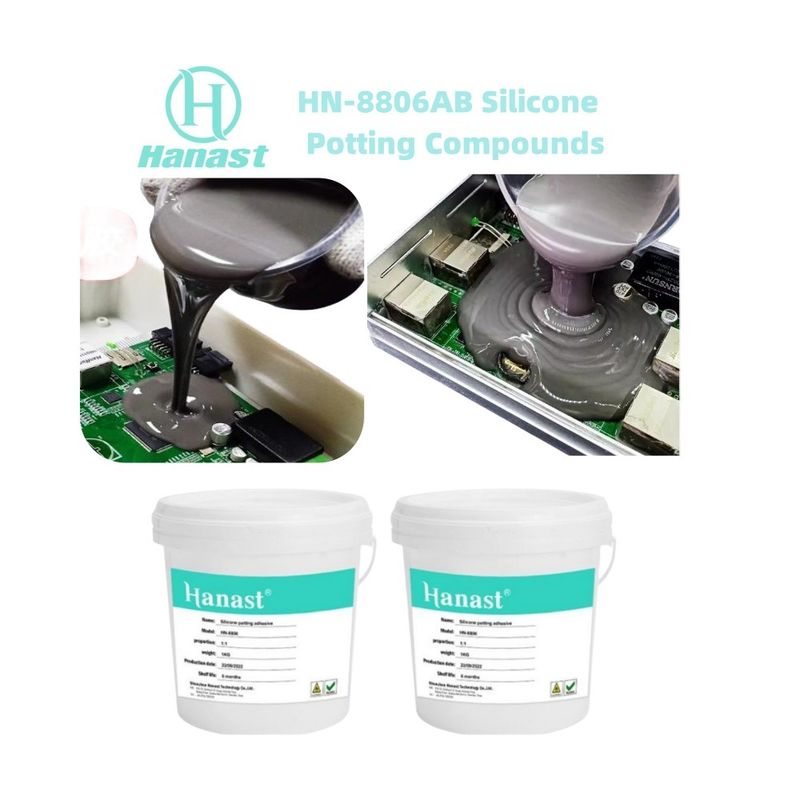

HN-8806 Two-Component Addition-Type Silicone Potting Rubber

Product Specification

		Test Items	Test Standard	Units	Product test results
		Test Items	Test Standard	Units	Part A	Part B
Before curing	1	Appearance	---	---	Grey, fluid	White, fluid
	2	Viscosity	GB/T10247-2008	25ºC, mPa·S	4500~5000	4500~5000
	3	Density	GB/T 13354-92	25ºC, g/cm³	1.50±0.05	1.50±0.05
	4	Mixing Ratio (A : B)	1:01	Weight ratio	100	100
		Mixing Ratio (A : B)	1:01	Volume ratio	100	100
	5	Operating time	Measured	hr	0.3-0.4
	6	Curing condition	Measured	hr	4^12 (25ºC,initial cure)
	6	Curing condition	Measured	hr	0.20 (80ºC)
After Curing	7	Appearance	---	---	Grey elastomer
	8	Hardness	GB/T 531.1-2008	Shore A	50±5
	9	Thermal conductivity	GB/T10297-1998	w/m·k	≥0.76
	10	Expansivity	GB/T20673-2006	μm/(m,ºC)	210
	11	Moisture Absorption	GB/T 8810-2005	24h,25ºC, %	0.01~0.02
	12	Volume resistivity	GB/T 1692-92	(DC500V),Ω · cm	1.0×10¹⁵
	13	Dielectric intensity	GB/T 1693-2007	Kv/mm(25ºC)	18^25
	14	Temperature Resistance	Measured	ºC	-50~+250°c

Product Advantages

High-Performance Elastomer: Forms a high-elasticity, high-strength protective layer after curing.

Low Viscosity: Suitable for deep-section potting, ensuring even distribution.

No By-Products: No heat or by-products are emitted during curing, ensuring component safety.

Flame Retardant: Passes UL-94 flame retardancy tests, ensuring safety in high-temperature environments.

Eco-Friendly Certification: Complies with RoHS standards, non-polluting.

Waterproof Thermal Conductive Liquid Clear Silicone Rtv Gel For Electronics Low Viscosity Waterproof 0

Applications

Potting and sealing of power modules, circuit boards, and high-voltage transformers.

Protection and thermal management for battery packs and fast-charging adapters.

Moisture-proof and waterproof protection for LED outdoor drive power supplies.

Other electronic components requiring vibration, water, and thermal protection.

Application Method

1.Mix components A and B in a 1:1 ratio, stir thoroughly, and then proceed with potting.

2.Ensure the surface of the components is clean before potting. For large products, pot in stages.

3.For automated production lines, vacuum components A and B separately to ensure accurate mixing ratio.

Waterproof Thermal Conductive Liquid Clear Silicone Rtv Gel For Electronics Low Viscosity Waterproof 1

Technical Parameters

Appearance: Part A – Grey fluid; Part B – White fluid

Viscosity: 4500~5000 mPa·S

Density: 1.50±0.05 g/cm³

Mixing Ratio (A:B): 1:1

Pot Life: 0.3-0.4 hours

Curing Conditions: 4-12 hours at room temperature (initial cure), 0.2 hours at 80°C

Hardness: 50±5 Shore A

Thermal Conductivity: ≥0.76 W/m·K

Volume Resistivity: 1.0×10¹⁵ Ω·cm

Temperature Resistance: -50°C to +250°C

Packaging
10KG/Set (A 5kg + B 5kg)
20KG/Set (A 10kg + B 10kg)
50KG/Set (A 25kg + B 25kg)

Waterproof Thermal Conductive Liquid Clear Silicone Rtv Gel For Electronics Low Viscosity Waterproof 2

Waterproof Thermal Conductive Liquid Clear Silicone Rtv Gel For Electronics Low Viscosity Waterproof 3

Precautions

Stir components A and B separately before use to ensure even mixing.

Avoid contact with substances containing tin, sulfur, or amines to prevent curing inhibition.

Maintain cleanliness during use to prevent contamination.
