Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound

Name: Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound
Brand: Shenzhen Hanast New Material co.,LTD
SKU: HN-6607AB
Availability: InStock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Hanast
Certification:	ROHS SGS
Model Number:	HN-6607AB

Detail Information

Place of Origin:

Guangdong, China

Brand Name:

Hanast

Certification:

ROHS SGS

Model Number:

HN-6607AB

Name:

Shore 00 Self-Healing Jelly Gel

Keyword:

Electrical Insulation Silicone Gel

Waterproof:

Yes

Type:

Ab Gel Silicone,2 Parts

Application:

AC Capacitors, Negative Ion Generators, Aquarium Water Pumps, Ignition Coils

Feature:

Electrical Insulation，low-viscosity，soft And Clear

Color:

Clear

Application:

Junction Box,pcb,load Cell Etc

Mxi Ratio:

1:1

Customzation:

Support

Highlight:

High Light

Highlight:

Electronic silicone gel for pressure sensors

EV battery waterproof potting compound

Two-part silicone gel for electronics

Trading Information

Minimum Order Quantity:

1kg

Price:

Negotiable

Packaging Details:

25KG/barrel

Payment Terms:

T/T, D/A, D/P

Product Description

Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound

Product Description of softness silicone gel:

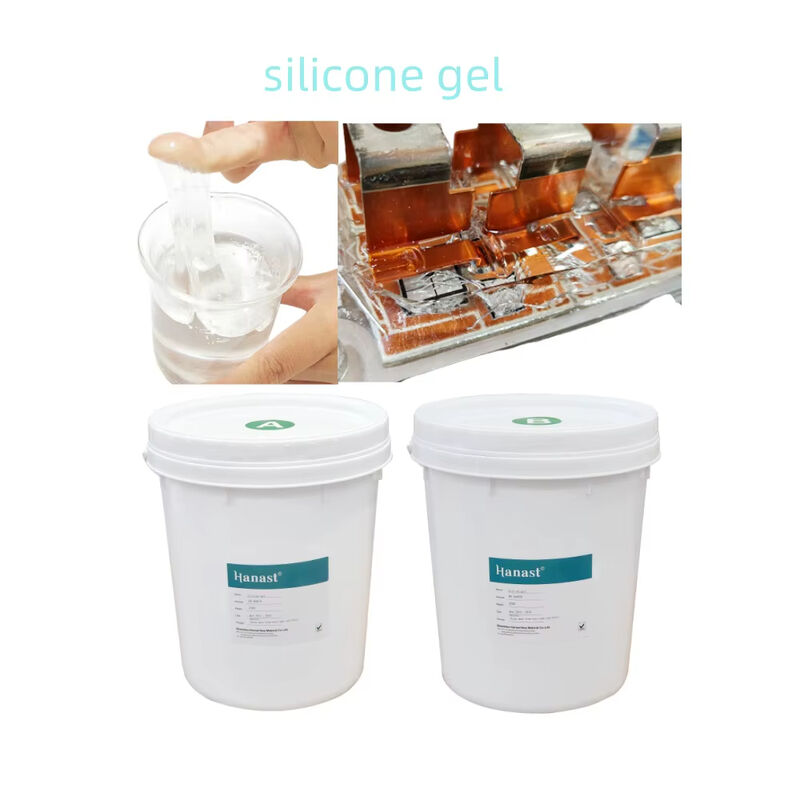

Electronic-grade silicone gel is a highly elastic liquid silicone rubber that cures via a cross-linking reaction; upon curing, it transforms into a soft, jelly-like solid and is primarily used to protect sensitive electronic components.

Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound 0

Physical Properties of softness silicone gel:

Characteristics before curing
Component	Component A	Component B
Color	Transparent liquid	Transparent liquid
viscosity(cp s. 25℃)	800～2000	800～1800
Relative density(mpa•s)	1 ．0～1.12	0.98～1.02
The mixing ratio	A:B=1:1
Viscosity after mixing(cp s. 25℃)	800～1500
Operate Time (25℃)	2 h
Penetration (1/10mm)	~ 200 400
Curing conditions (120℃)	20~30 分钟
Cured properties Hardness(Shore A, 24hr)	0～10

Advatanges of softness silicon gel :

1. Low viscosity, good flowability, bubble-free
2. Appearance: Transparent, high clarity
3. Temperature resistance: Withstands high and low temperatures
4. Waterproof (IP68 rating)
5. High shock resistance, low stress, impact resistant
6. Flame retardant
7. Yellowing-resistant, UV-resistant
8. Adjustable viscosity and curing time
9. Compatible with automated dispensing equipment
10. High flexibility; soft and jelly-like after curing
11. Fillers can be added (e.g., pigments, thermally conductive powder, flame retardants)

Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound 2

Physical Properties of softness silicone gel

Characteristics before curing
Component	Component A	Component B
Color	Transparent liquid	Transparent liquid
viscosity(cp s. 25℃)	800～2000	800～1800
Relative density(mpa•s)	1 ．0～1.12	0.98～1.02
The mixing ratio	A:B=1:1
Viscosity after mixing(cp s. 25℃)	800～1500
Operate Time (25℃)	2 h
Penetration (1/10mm)	200~ 400
Curing conditions (120℃)	20~30 mins
Cured properties Hardness(Shore A, 24hr)	0～10

Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound 3

Applications of our silicone gel :

Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound 4

Electronic Silicone Gel For Pressure Sensors EV Battery 1:1 Gel Silicone Two-Part Waterproof Potting Compound 5
