Thermally Conductive Liquid Clear Silicone Gel Bulk RTV Potting Compound For Electronics PCB

Brand Name:	Hanast
Model Number:	HN-8806AB
MOQ:	1kg
Price:	Negotiable
Packaging Details:	25KG/barrel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ROHS SGS

Name:

Silicone Potting Compound

Mix Ratio:

Keyword:

Electronic Potting Adhesive

Application:

Electronic Components, Solar Energy, Backlight, Electrical Module

Type:

Two-component Ab Glue

Appearance (Extreior):

Liquid

Highlight:

RTV silicone gel bulk

Potting silicone gel bulk

Bulk liquid clear silicone

Product Description

Thermally Conductive RTV Potting Compound For Electronics PCB High -Temp Potting Glue Low -Viscosity Flexible Waterproof Adhesive Potting

Product Description:

Two-component addition type silicone potting rubber for electronic components, which can be cured into high-performance elastomer by room temperature or heating.

Thermally Conductive Liquid Clear Silicone Gel Bulk RTV Potting Compound For Electronics PCB 0

Thermally Conductive Liquid Clear Silicone Gel Bulk RTV Potting Compound For Electronics PCB 1

Technical Parameters

Test Items	Test Standard	Units	Product test results
Test Items	Test Standard	Units	Part A	Part B
Before curing	1	Appearance	---	---	Grey, fluid	White, fluid
	2	Viscosity	GB/T10247-2008	25ºC, mPa·S	4500~5000	4500~5000
	3	Density	GB/T 13354-92	25ºC, g/cm³	1.50±0.05	1.50±0.05
	4	Mixing Ratio (A : B)	1:1	Weight ratio	100	100
		Mixing Ratio (A : B)	1:1	Volume ratio	100	100
	5	Operating time	Measured	hr	0.3-0.4
	6	Curing condition	Measured	hr	4^12 (25ºC,initial cure)
	6	Curing condition	Measured	hr	0.20 (80ºC)
After Curing	7	Appearance	---	---	Grey elastomer
	8	Hardness	GB/T 531.1-2008	Shore A	50±5
	9	Thermal conductivity	GB/T10297-1998	w/m·k	≥0.76
	10	Expansivity	GB/T20673-2006	μm/(m,ºC)	210
	11	Moisture Absorption	GB/T 8810-2005	24h,25ºC, %	0.01~0.02
	12	Volume resistivity	GB/T 1692-92	(DC500V),Ω · cm	1.0×10¹⁵
	13	Dielectric intensity	GB/T 1693-2007	Kv/mm(25ºC)	18^25
	14	Temperature Resistance	Measured	ºC	-50~+250°c

Product Feature:

1.1. At room temperature, the A/B glue can be operated for a long time after mixing (operable time: the period before the glue gels and thickens); under heating conditions, it can be quickly cured, which is conducive to use on automatic production lines. 1.2. It has high temperature resistance: after the glue is completely cured, it can maintain the elasticity and insulation properties of silicone rubber in the temperature range of (-60 ~ 250) ℃

Thermally Conductive Liquid Clear Silicone Gel Bulk RTV Potting Compound For Electronics PCB 2

Product Application:

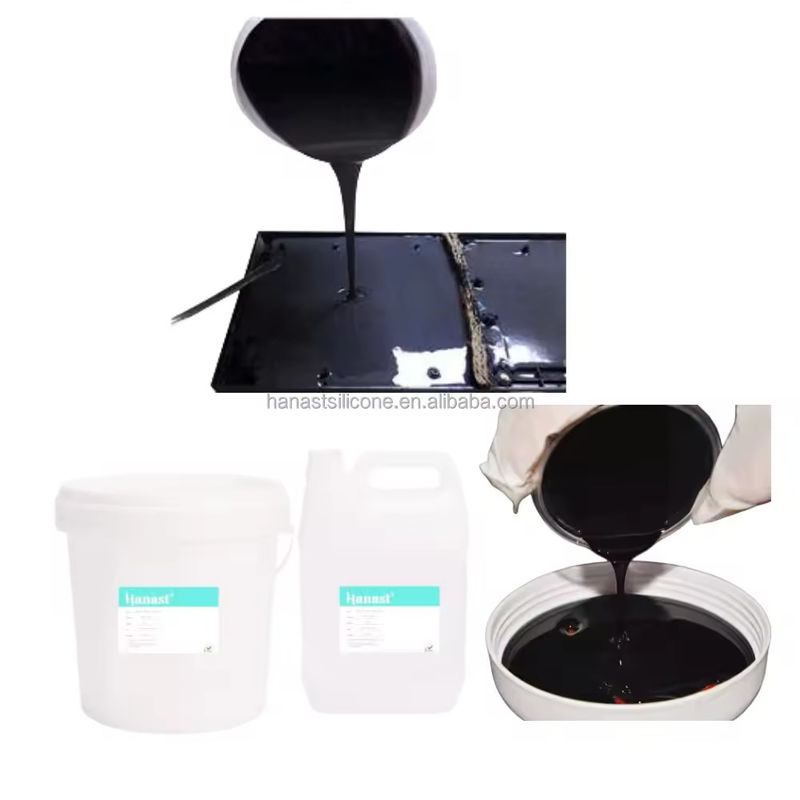

Used for potting and thermal insulation of battery packs, potting and protection of high-power electronic components in module power supplies and circuit boards. Such as automotive HID lamp module power supplies, automotive ignition system module power supplies, solar panels, transformers, sensors, etc.

Thermally Conductive Liquid Clear Silicone Gel Bulk RTV Potting Compound For Electronics PCB 3
