High Dielectric Strength Silicone Potting Compound For High Voltage Power Components

High Dielectric Strength Silicone Potting Compound For High Voltage Power Components

Product Overview for Silicone Potting Compound:

The HN-8808 Series Potting Compounds meet the stringent reliability requirements of automotive electronics. Their excellent elastomeric properties effectively absorb mechanical vibration and shock stress. The wide operating temperature range (-50°C to 200°C) ensures stable performance in harsh environments like engine compartments. This product is designed to protect automotive electronic modules from moisture, chemicals, thermal cycling, and vibration, helping them pass automotive-grade reliability tests.

Key Performance Parameters for Silicone Potting Compound:

Product Highlightsfor Silicone Potting Compound:

1. Environmental Resilience:Resistance to Extreme Temperature Cycling: Exhibits exceptional thermal shock resistance, remaining unfazed by sudden and drastic temperature fluctuations. Dual-85 High-Humidity/High-Temperature Resistance: Maintains consistently stable physical and electrical properties even within extreme environments characterized by high heat and humidity.
2. Chemical Resistance:Resistance to Oil and Chemical Media:Demonstrates superior resistance to permeation and corrosion against common automotive fluids, such as engine oil, brake fluid, and coolant.
3. High-Efficiency Stress Relief:Low Hardness, High Elasticity:Leverages its "soft-elastic" characteristics to perfectly absorb and dissipate the mechanical stresses arising from thermal expansion mismatches between the PCB and its housing. Protection for Precision Components:Significantly reduces the mechanical stress exerted on solder joints, thereby preventing fragile electronic components from cracking.
4. Vehicle Lifecycle Durability:Exceptional Aging Resistance:Boasts outstanding weatherability and UV resistance, providing continuous protection that endures for the entire service life of the vehicle.
5. Environmental Compliance:Strict Control of Hazardous Substances: Fully complies with international environmental directives—such as RoHS—effortlessly meeting the stringent "green" entry requirements of the automotive supply chain.

Application Areas for Silicone Potting Compound:

1. Powertrain Core Control (Powertrain ECUs): Engine Control Units (ECUs)—withstanding the high-temperature and high-vibration environment of the engine compartment. Core "Three-Electric" Modules—protection for the core circuitry of the Battery Management System (BMS) and On-Board Charger (OBC).
2. Precision Intelligent Sensing (Automotive Sensors): Environmental and Powertrain Sensors—sealing for miniature precision components such as pressure sensors and position sensors.
3. Body Electronics & Lighting: Lighting Control Modules—weatherproofing and waterproofing for light drivers and illumination controllers. Wiper Controllers—protection against moisture and mechanical shock at the windshield interface.
4. Intelligent Cockpit Systems (Infotainment & Dashboards): In-Vehicle Infotainment (IVI) Systems—stress relief for audio-video processing units. LCD Instrument Clusters—ensuring the long-term reliability of electronic display driver boards.

Detailed Operating Guide for Silicone Potting Compound:

1. Process Validation: Strongly recommend process validation before mass production to confirm compatibility with your substrates (e.g., epoxy PCB, polyurethane enameled wires).

2. Precise Metering & Mixing: Recommend using static mixers with dual-component meter-mix equipment for absolute ratio accuracy and thorough mixing, critical for long-term automotive reliability.

3. Vacuum Degassing: Vacuum degassing is mandatory to eliminate any potential for partial discharge or increased thermal resistance.

4. Controlled Potting Environment: Potting should be done in a clean, temperature, and humidity-controlled environment to minimize contamination risk.

5. Adequate Curing & Post-Curing: Allow to sit at room temperature for at least 24 hours after potting before electrical testing. Final sealing and rigorous environmental testing should be performed after 7 days.

Packaging & Storage for Silicone Potting Compound:

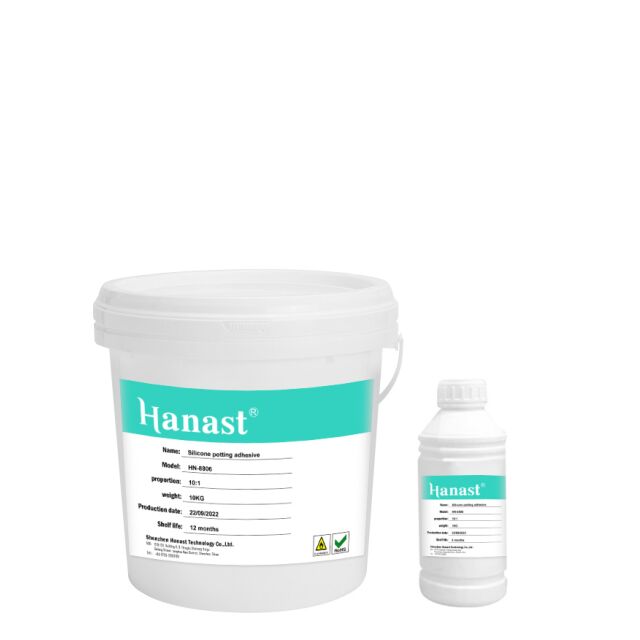

1. Diverse Standard Packaging Options:22 kg/set: General specification for mass production (Component A: 20 kg + Component B: 2 kg). 11 kg/set: Specification for pilot runs or small-batch production (Component A: 10 kg + Component B: 1 kg). 200 kg/drum: Large-capacity steel drums are available for large-scale automated production lines. Mixing Ratio Note: The product is packaged at the factory according to the optimal 10:1 ratio; it is ready for immediate use on the production line upon opening.
2. Strict Storage Conditions:Environmental Requirements: Must be stored indoors in a cool, dry, and well-ventilated environment. Key Precautions: Strictly avoid direct sunlight; keep away from open flames and high heat sources; ensure proper moisture protection and airtight sealing.
3.Shelf Life Specifications:Duration: When kept in its original, unopened, and sealed packaging, the product has a shelf life of 6 months from the date of manufacture. Re-inspection Recommendation: If the product exceeds its shelf life, it must undergo re-testing to verify critical physical and electrical properties; it may only be put into production after passing these tests.
